High Ag Brazing Alloys Cadmium Free Grades

DESCRIPTION & APPLICATIONS :

These alloys are RoHS compliant, safe to use, and free from cadmium-related health concerns. They are ductile, strong, and free-flowing, available in multiple forms such as rods, wires, rings, preforms, and flux coating rods.

They fall into two groups: with Tin (lower melting point) and without Tin. When brazing in air, a suitable flux is required.

Ideal for joining similar or dissimilar metals, these alloys ensure strong, neat joints and come in various compositions tailored for different applications.

Wire in Coils and Spools (Dia 0.80mm to 4.00mm)

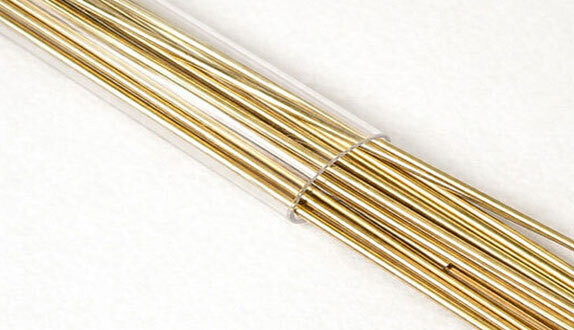

Cut Rods (Dia 1.00 mm to 4.00mm, Length 500mm and 1000mm or as per Customer Requirements)

Rings (Dia 0.80 mm to 2.00mm x ID 4 mm to 30 mm)

Enquiry

Grades & specifications

High Ag Brazing Alloys Cadmium Free Grades — composition, operating temperature and international standards by grade
STAVINOX Ag Brazing Alloy	Normal composition %				Operating temp (°C)	International standards
STAVINOX Ag Brazing Alloy	Ag	Cu	Zn	Others	Operating temp (°C)	IS 2927	DIN EN 1044	BS 1845	AWS A5.8	DIN 8513
STAVINOX Ag 92	92.5	7.3	-	Li 0.20	890	BACuAg0	-	-	BAg-19	-
STAVINOX Ag 85	85	-	-	Mn 15	960	-	Ag501	Ag19	BAg-23	L-Ag85
STAVINOX Ag 83	83	15	2	-	830	-	-	-	-	L -Ag83
STAVINOX Ag 75	75	22	3	-	770	BACuAg2	-	-	-	L -Ag75
STAVINOX Ag 72	72	28	-	-	780	BACuAg3	Ag401	Ag7	BAg-8	L-Ag72
STAVINOX Ag 72	72	-	28	-	730	-	-	-	-	-
STAVINOX Ag 70	70	20	10	-	730	-	-	-	BAg-10	-
STAVINOX Ag 67	67	23	10	-	730	-	-	-	-	L-Ag67
STAVINOX Ag 64	64	20	16	-	720	-	Ag201	-	BAg-9	L-Ag64
STAVINOX Ag 63	63	28.5	-	Ni 2.5, Sn 6	790	-	-	-	BAg-21	-
STAVINOX Ag 61	61	29	10	-	730	BACuAg6	-	-	-	-
STAVINOX Ag 60 Low Sn	60	23	14	Sn 3	680	-	Ag101	-	-	L -Ag60Sn
STAVINOX Ag 60	60	26	14	-	710	-	Ag202	Ag13	-	L-Ag60
STAVINOX Ag 60 High Sn	60	30	-	Sn 10	720	BACuAg7	-	-	BAg-18	-
STAVINOX Ag 56	56	22	17	Sn 5	650	BACuAg8	Ag102	-	BAg-7	-
STAVINOX Ag 55Sn	55	21	22	Sn 2	650	-	Ag103	Ag14	-	L-Ag55Sn
STAVINOX Ag 56	56	42	-	Ni 2	885	-	-	-	BAg-13a	-
STAVINOX Ag 54	54	40	5	Ni 1	845	BACuAg8	-	-	BAg-13	-
STAVINOX Ag 50NCdf	50	20	28	Ni 2	740	-	-	-	BAg-24	-
STAVINOX Ag 50CdF	50	34	16	-	765	BACuAg9	-	-	BAg-6	-
STAVINOX Ag 45Sn	45	27	25	Sn3	670	-	Ag104	-	BAg-36	L-Ag45Sn
STAVINOX Ag 45Cdf	45	30	25	-	730	BACuAg14	Ag203	Ag15	BAg-5	L-Ag44
STAVINOX Ag 43Cdf	43	37	20	-	760	BACuAg16	-	Ag5	-	-
STAVINOX Ag 40Sn	40	30	28	Sn2	690	-	Ag105	Ag20	BAg-28	L-Ag40Sn
STAVINOX Ag 38Sn	38	32	28	Sn2	710	-	-	-	BAg-34	-
STAVINOX Ag 35CdF	35	32	33	-	740	-	-	-	BAg-35	-
STAVINOX Ag 34Sn	34	36	27	Sn3	710	-	Ag106	-	-	L-Ag34Sn
STAVINOX Ag 30CdF	30	38	32	-	750	-	Ag204	Ag16	BAg-20	L-Ag30
STAVINOX Ag 30Sn	30	36	32	Sn2	740	-	Ag107	Ag21	-	L-Ag30Sn
STAVINOX Ag 25Sn	25	40	33	Sn2	750	-	Ag108	-	BAg-37	L-Ag25Sn
STAVINOX Ag 25CdF	25	41	34	-	780	-	Ag205	Ag17	-	L -Ag25
STAVINOX Ag 20	20	44	35.9	Si 0.1	810	-	Ag206	-	-	L-Ag20
STAVINOX Ag 12CdF	12	48	40	-	815	-	Ag207	-	-	L-Ag12
STAVINOX Ag 5CdF	5	55	39.9	Si 0.1	860	-	Ag208	-	-	L-Ag5
